| Tuet | |||||
|---|---|---|---|---|---|
| Piirisarja: | AMD B850. | Cpu Tuet: | AMD Ryzen 9000 / 8000 / 7000. | Muisti tuet: | 4x UDIMM, DDR5 |
| PCI-E ja Ääni | |||||
| 3x PCI-E x16: | PCI_E1 Gen PCIe 5.0 supports up to x16. PCI_E2 Gen PCIe 3.0 supports up to x1. PCI_E3 Gen PCIe 4.0 supports up to x4. |
PCI-E1: | Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
Ääni: | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio. |
| SSD ja RAID: | |||||
| SSD NVMe: | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
SATA: | 4x SATA 6G | RAID tuet: | RAID 0, RAID 1 and RAID 10 for M.2 NVMe |
| USB ja LAN | |||||
| USB (Rear): | 4x USB 2.0 1x USB 5Gbps Type A 2x USB 10Gbps Type A 3x USB 10Gbps Type C |
USB (Front) | 4x USB 2.0 4x USB 5Gbps Type A 1x USB 20Gbps Type C |
LAN: | Realtek 8126VB 5G LAN |
| Sisäinen IO | |||||
| USB ja Virta | 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) |
FAN ja LED | 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
Rand. liittimet | 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) |
| Wifi, Bluetooth ja Led | |||||
| Wifi | Wi-fi 7 | Bluetooth: | Bluetooth 5.4 | Led: | 4x EZ Debug LED 1x EZ Memory Detection LED |

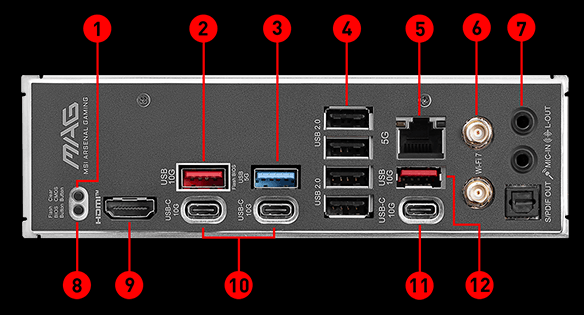

| Taka paneelin portit: | |||||
| ① Clear CMOS Button ② USB 10gbps Type-A ③ USB 5gbps Type-A ④ USB 2.0 4x ⑤ 5G LAN ⑥ Wi-fi / Bluetooth ⑦ Audio ⑧ Flash BIOS Button ⑨ HDMI ⑩ USB 10gbps Type-C ⑪ USB 10gbps Type-C ⑫ USB 10gbps Type-A  |
|||||
